Arduino Based CAN Bus, LIN Bus, Ethernet Development And Prototyping Boards For Automotive And Industrial Applications

S For Story/10440259
Teensy 4 1 Triple Can Board With 240x240 Lcd And E Teensy 3 2 Can Bus And Lin Bus Breakout Board Teensy 4 0 Triple Can Board With 240x240 Ips Lcd A Teensy 3 6 Can Bus Fd Demo Board With 2 8 Tft Lcd Teensy 4 0 Can Fd To Usb Converter Copperhill Technologies Corporation
Copperhill Technologies offers a line of Arduino-compatible boards designed to provide maximum I/O capabilities, backed up by a slew of fully featured software libraries designed to run on Arduino. The interfaces include USB, Classical CAN, CAN FD, LIN Bus, and Ethernet.

GREENFIELD, Mass. - s4story -- The Teensy series of embedded systems represents a complete USB-based microcontroller development environment in a minimum footprint, and it is suitable to implement many types of projects. The programming is accomplished via the USB port, using the popular Arduino IDE (Integrated Development Environment). Consequently, the Teensy boards are fully compatible with Arduino Software & Libraries.

Most programs that are written for the Arduino will work on the Teensy. All of the standard Arduino functionality (digitalWrite, pinMode, analogRead, etc.) works on the Teensy platform. Teensy has the same built-in peripherals as the Arduino: analog inputs, SPI, I2C, PWM, and a real serial port. For applications that need the serial port (MIDI, GPS modules, etc.), Teensy is very easy to use because uploading takes place through the USB port.

More on S For Story
All of the Copperhill Teensy breakout boards are designed for projects that require Local Interconnect Network (LIN Bus), Controller Area Network (CAN Bus), CAN FD, SAE J1939, or Ethernet.

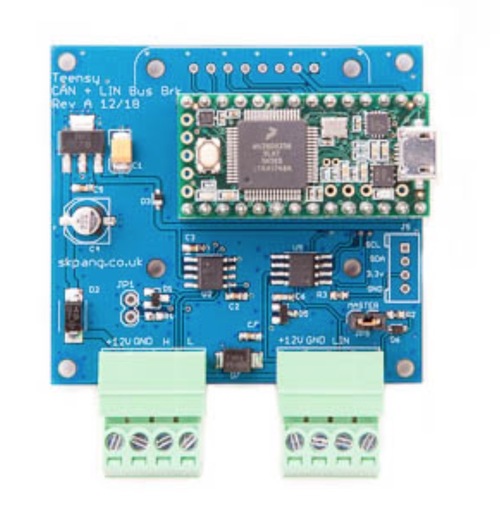

The Teensy 3.2 CAN Bus And LIN Bus Breakout Board serves as a gateway device for automotive applications to monitor CAN and LIN Bus data traffic or as a bridge between these two technologies.

The Teensy 3.6 CAN and CAN FD Breakout Board can serve as a bridge between Classical CAN and CAN FD, providing true compatibility between two generations of CAN Bus networks.

The Teensy 4.0 Triple CAN Bus Breakout Board supplies two Classical CAN 2.0B, and one CAN FD interface for the communication between several CAN Bus networks. An extended version, the Teensy 4.1 Triple CAN Bus Breakout Board, also provides an Ethernet port, which opens the door to applications for the Internet of Things (IoT).

More on S For Story
Most of the Copperhill Teensy series boards come with TFT LCD, SD card support, Real-Time Clock (RTC), and onboard voltage regulators with reverse supply voltage protection. All boards and their corresponding interfaces are well documented (user manuals, schematics), and a vast library of programming samples supports the development and rapid prototyping of automotive and industrial applications

Wilfried Voss

Source: Copperhill Technologies Corp.
